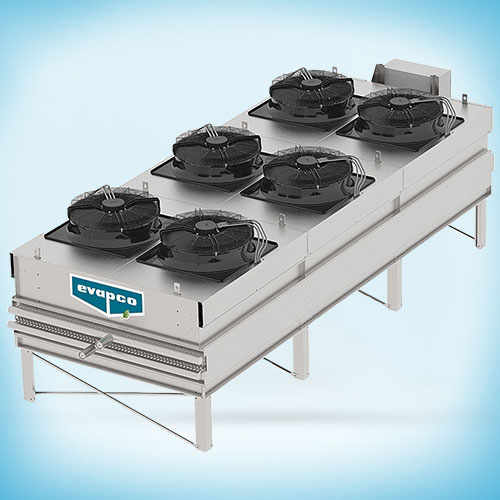

EAFWD

Unlike other dry products currently on the market, the EVAPCO eco-Air Series units are 100% fully rated.

Unlike other dry products currently on the market, the EVAPCO eco-Air Series units are 100% fully rated. Every eco-Air unit comes with EVAPCO’s exclusive 100% thermal performance guarantee, ensuring peace of mind in selecting the ideal cooling solution for your needs.

  • Runs 100% dry
  • 304 stainless steel tubing as standard
  • Aluminum fins as standard
  • Ranging in capacity from 32 to 195 nominal tons
  • Reduced maintenance
  • Ships as one piece, ready for installation
  • Low profile

Hot Process fluid enters the inlet header connection, shown in red. Heat from the fluid dissipates through the coil tubes surface and out to the fins. Ambient air is drawn in over the coil surface by the fan located at the top of the unit. Heat from the process fluid transfers to the air and discharges to the atmosphere. Cool process fluid exits the unit through the connections shown in blue.

#
  • Advanced Motor Technology
    • Available with Electronically Commutated (EC) or Alternating Current (AC) fan motor designs
    • The motors are pre-wired at the factory to reduce field wiring costs
    • All units are wired to a common terminal box
    • EVAPCO controls package allows single point power and full capacity control
  • AC
    • Highly efficient direct drive
    • VFD ready
    • Severe Duty
  • EC
    • Integrated speed control
    • High Efficiency
    • Zero Maintenance
    • Inherently Low Sound
  • Epoxy Coated Fins
    • Increased corrosion resistance
    • No impact on unit capacity
  • Advanced Construction
    • Constructed with high-grade Type 304 stainless steel tubing
    • Compliant with GB/T14296
    • Available in 5/8-inch (16mm) OD
  • Coil Design
    • Designed using CFD modeling and heat transfer analysis
    • Performance verified through in-house testing
  • Coil Return Bend Covers
    • Protects the coil return bends during handling and operation
  • Easy Rigging
    • All units ship and install as a single piece
  • Fork Lift Channels
    • Standard on all units up to 8.2 meters in length
  • Individual Motor Disconnect Switches
    • Mounted at each fan motor to isolate motors electrically
  • EVAPCO Control Package
    • Factory mounted and wired when possible
    • Controls fan speed based on real-time load & ambient
    • EVAPCO PLC Controller
    • Supervisory system integration
    • EC Motor Option: Modbus control
    • AC Motor Option: VFD with bypass
    • IP55 Rated, thermal overload protection
    • Status indicators on panel exterior
    • Fluid and ambient temperature sensors
    • Rain/Sun hood (optional)
